Chatbot Automation

Overview

Soosh’s chatbot automation allows you to create intelligent, automated responses for your WhatsApp messages. From simple keyword-based replies to complex AI-powered conversations, you have full control over how your business responds to customers.

Navigation

The Chatbot section in the sidebar provides access to all chatbot features:

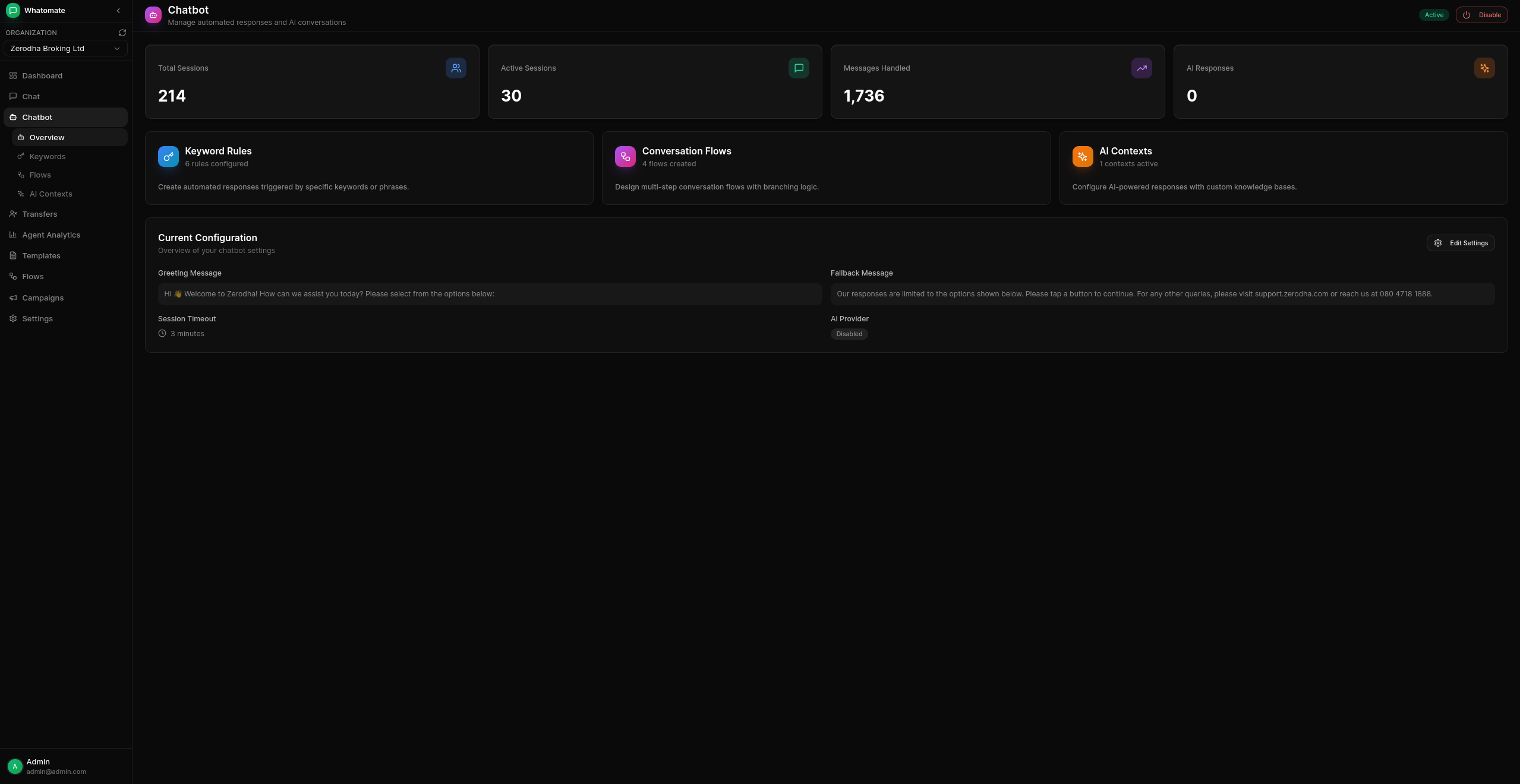

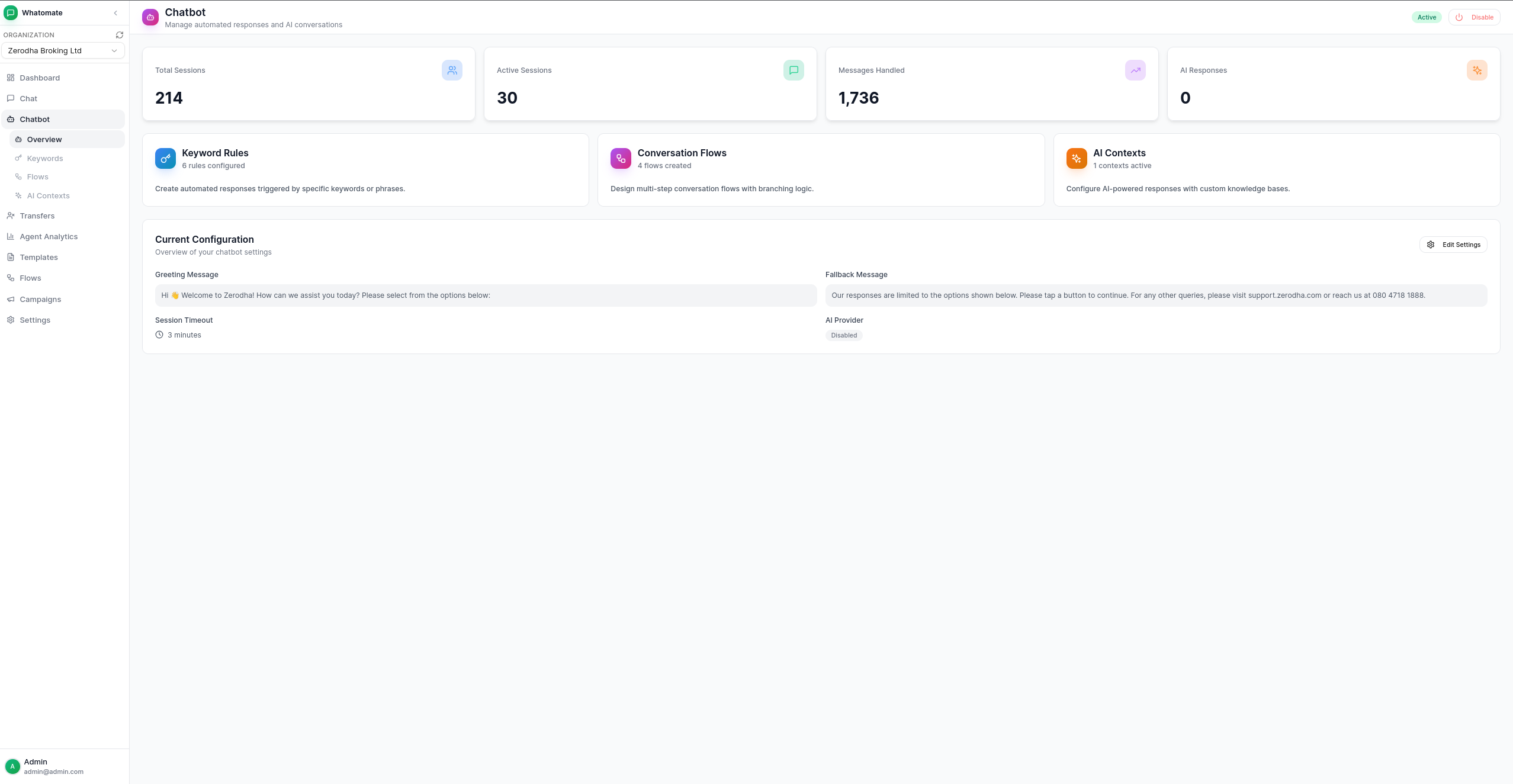

• Overview - Dashboard with statistics and quick access to settings
• Settings - Configure chatbot behavior, business hours, and AI
• Keywords - Create keyword-based auto-responses
• Flows - Design multi-step conversation flows
• AI Contexts - Configure AI knowledge bases
• Transfers - View and manage agent transfer queue

Chatbot Settings

Configure global chatbot behavior including greeting messages, fallback messages, and session settings.

Note

Each settings tab has its own workspace component and permission: the bot’s messages (settings.chatbot), agent routing (chatbot.routing), business hours (chatbot.hours) and SLA (chatbot.sla); the AI tab uses settings.chatbot while AI replies and knowledge is on. Members see only the tabs they can read, and can change only the ones they can write. When a workspace doesn’t have a component, its fixed behaviour applies: without business hours the workspace is always open, without agent routing any agent can pick up from the queue (agents limited to the current conversation stay limited), and without SLA nothing has deadlines or escalates. Agent routing and business hours apply with or without the bot; SLA needs it. Transfers to a team still follow the team’s own assignment strategy. See Roles & Permissions.

Greeting Message

The greeting message is automatically sent to new contacts when they first message your business (or after the session timeout expires). You can optionally add interactive buttons (up to 10) to guide users to common actions.

Fallback Message

When no keyword rules, AI contexts, or conversation flows match an incoming message, the fallback message is sent. Like the greeting message, you can add interactive buttons to help users navigate.

Interactive Buttons

Both greeting and fallback messages support WhatsApp interactive buttons:

• 1-3 buttons: Displayed as quick reply buttons
• 4-10 buttons: Displayed as a list menu

Session Timeout

Configure how long a session remains active. When a user messages again after the timeout, they receive the greeting message as if starting a new conversation.

Tip

Use buttons to guide users to common topics like “Track Order”, “Speak to Agent”, or “View Products”.

Business Hours

Configure when your chatbot is active and how it behaves outside business hours.

Setting Up Business Hours

1. Enable Business Hours

   Toggle the business hours feature on in the Business Hours tab.

2. Configure Daily Schedule

   For each day of the week:

   • Enable or disable the day
   • Set opening and closing times

3. Out of Hours Message

   Configure a message to send when customers contact you outside business hours.

4. Automated Responses Outside Hours

   Choose whether to allow flows, keywords, and AI responses to work 24/7 (enabled by default) or restrict them to business hours only.

Tip

Even with business hours enabled, you can allow automated flows and keyword responses to work around the clock. This is useful for handling common inquiries while still informing customers of your operating hours.

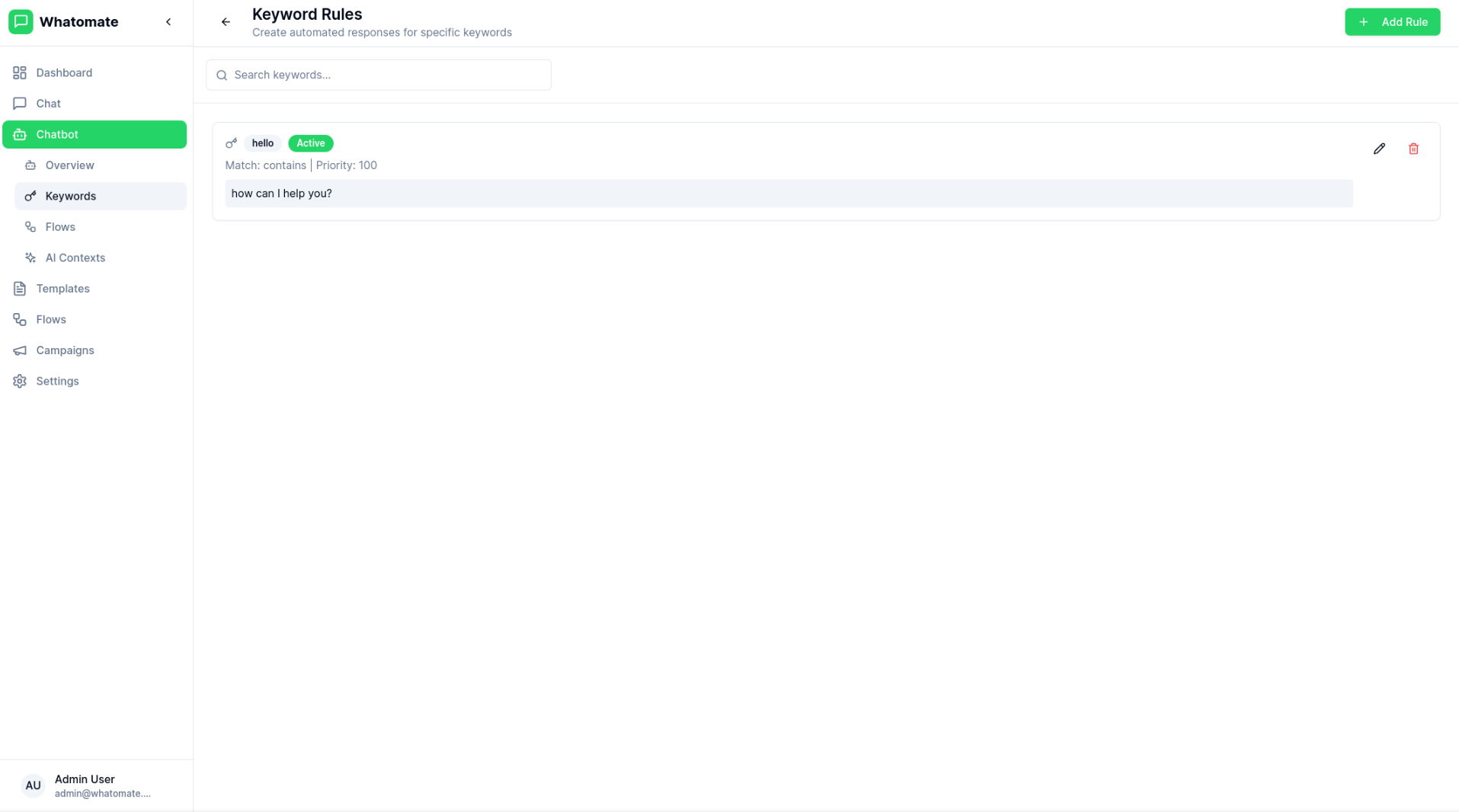

Keyword Rules

Create automated responses triggered by specific keywords or phrases.

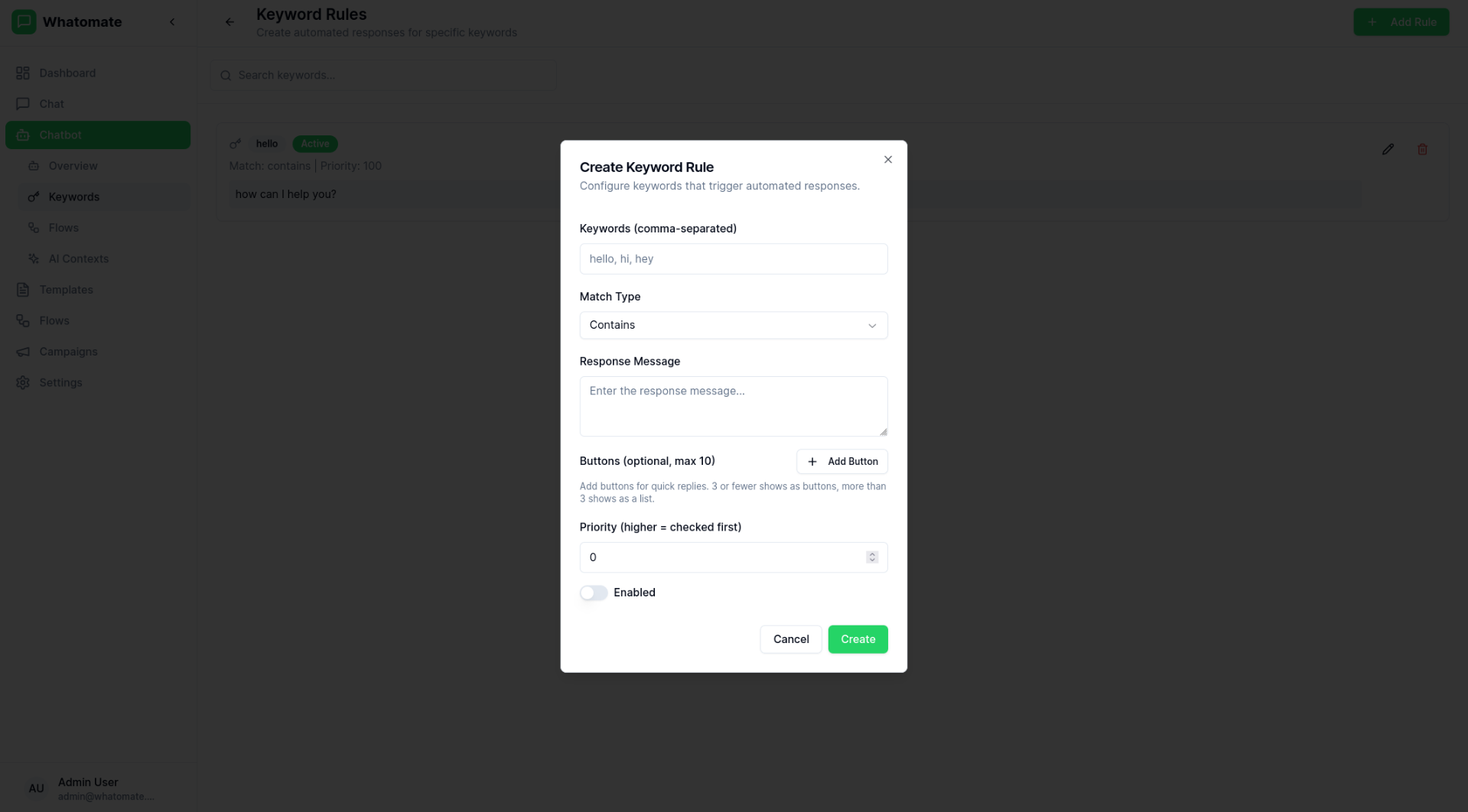

Creating a Keyword Rule

1. Define Keywords

   Add one or more keywords or phrases that will trigger the rule.

2. Set Match Type

   Choose how keywords should be matched:

   • Exact - Message must match exactly
   • Contains - Message contains the keyword
   • Starts with - Message begins with the keyword
   • Regex - Use regular expressions for complex patterns

3. Configure Response

   Set the response type and content:

   • Text - Send a text message reply
   • Template - Send a pre-approved template message
   • Media - Send image, video, or document
   • Flow - Trigger a conversation flow
   • Script - Run a script to build the reply dynamically
   • Transfer to Agent - Transfer the conversation to a human agent

4. Set Priority

   Assign priority to determine which rule applies when multiple rules match.

AI Settings

Configure AI-powered responses to handle queries that don’t match keywords or flows.

Enabling AI Responses

Replies and customer memory use Soosh AI, which picks the provider and model for you. There is no provider, model or API key to set up; usage is charged to the workspace wallet (see Settings → AI usage).

1. Turn on AI responses

   In Settings → Chatbot → AI, switch on AI responses.

2. Set System Prompt

   Define how the AI should behave and what context it should use for responses (up to 8,000 characters).

3. Add knowledge

   Add AI contexts (below) with what the AI should know about your business (up to 16,000 characters each).

The AI is told to keep replies under 80 words unless the customer asks for detail. With the conversation so far included, each earlier message it reads is cut to its first 1,000 characters.

Typing indicator

While the AI writes a reply, the customer can see “typing…” on their message. It shows until the reply arrives (WhatsApp hides it after 25 seconds), and it also marks their message as read. Choose in Settings → Chatbot → AI:

• Same as read receipts (the default): shown on numbers that send read receipts (the number’s Auto read receipt setting), so a number that hides read receipts doesn’t send them this way either.
• Show or Don’t show: for every number in the workspace.

It’s only shown when the AI will actually reply, for example not when AI is paused for credit. When the AI waits for the customer to finish writing (below), it’s shown on the first message they send and stays up until the reply.

Waiting for the customer to finish writing

Customers often send a thought in several short messages (“hi”, “I ordered a lamp yesterday”, “where is it?”). The AI waits a moment after each message and then answers all of them in one reply, instead of replying to each. Set how long it waits in Settings → Chatbot → AI → Wait for the customer to finish writing:

• Default: the platform’s wait, 3 seconds.
• Don’t wait: the AI answers each message as it comes in.
• 1 to 8 seconds: a longer wait catches longer bursts but makes every reply arrive later.

It applies to every number in the workspace, to the bot’s AI replies and to AI steps in flows. Keyword replies and flows still answer each message as it comes in.

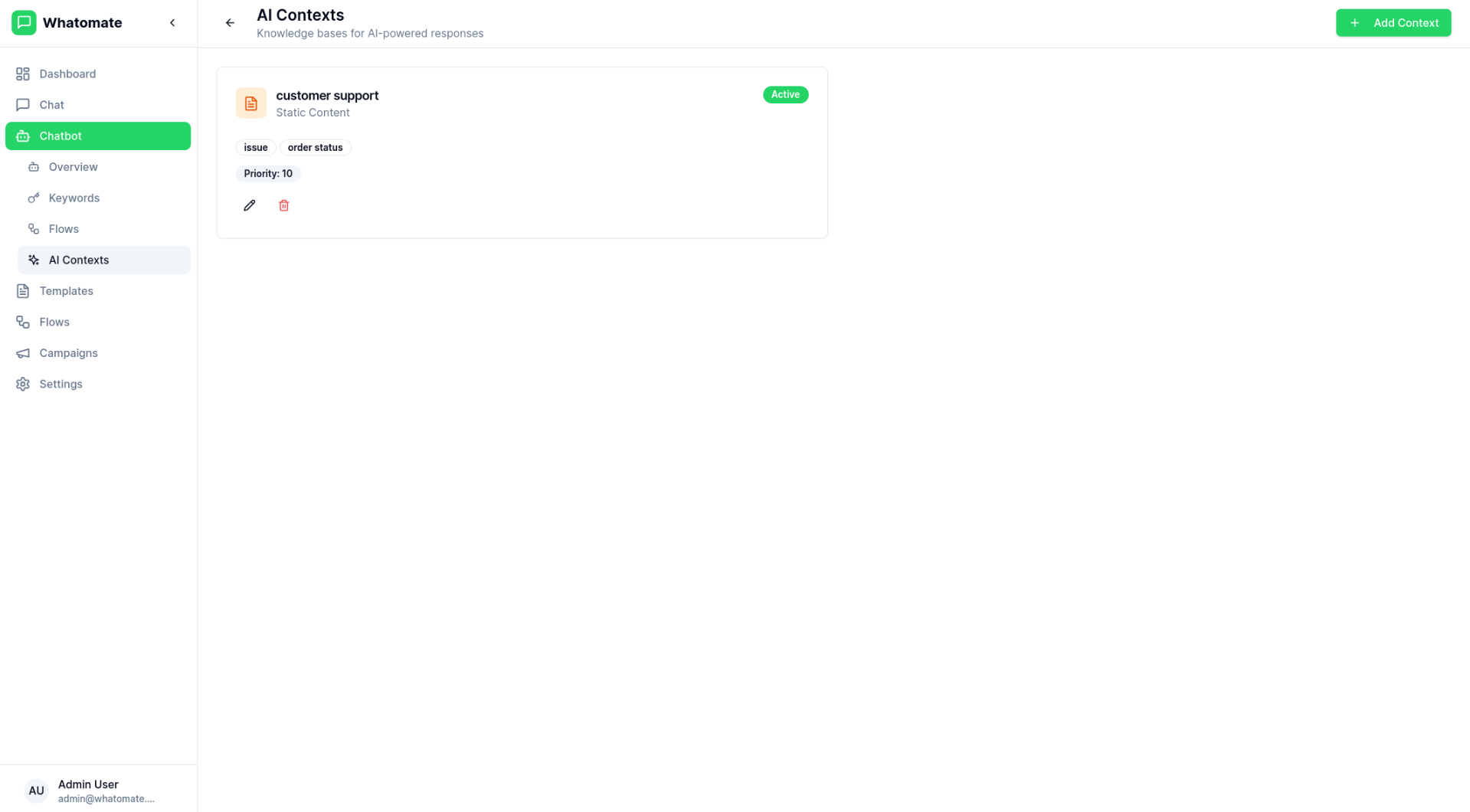

AI Contexts

Enhance your chatbot with AI-powered responses using contexts that provide relevant information to the AI.

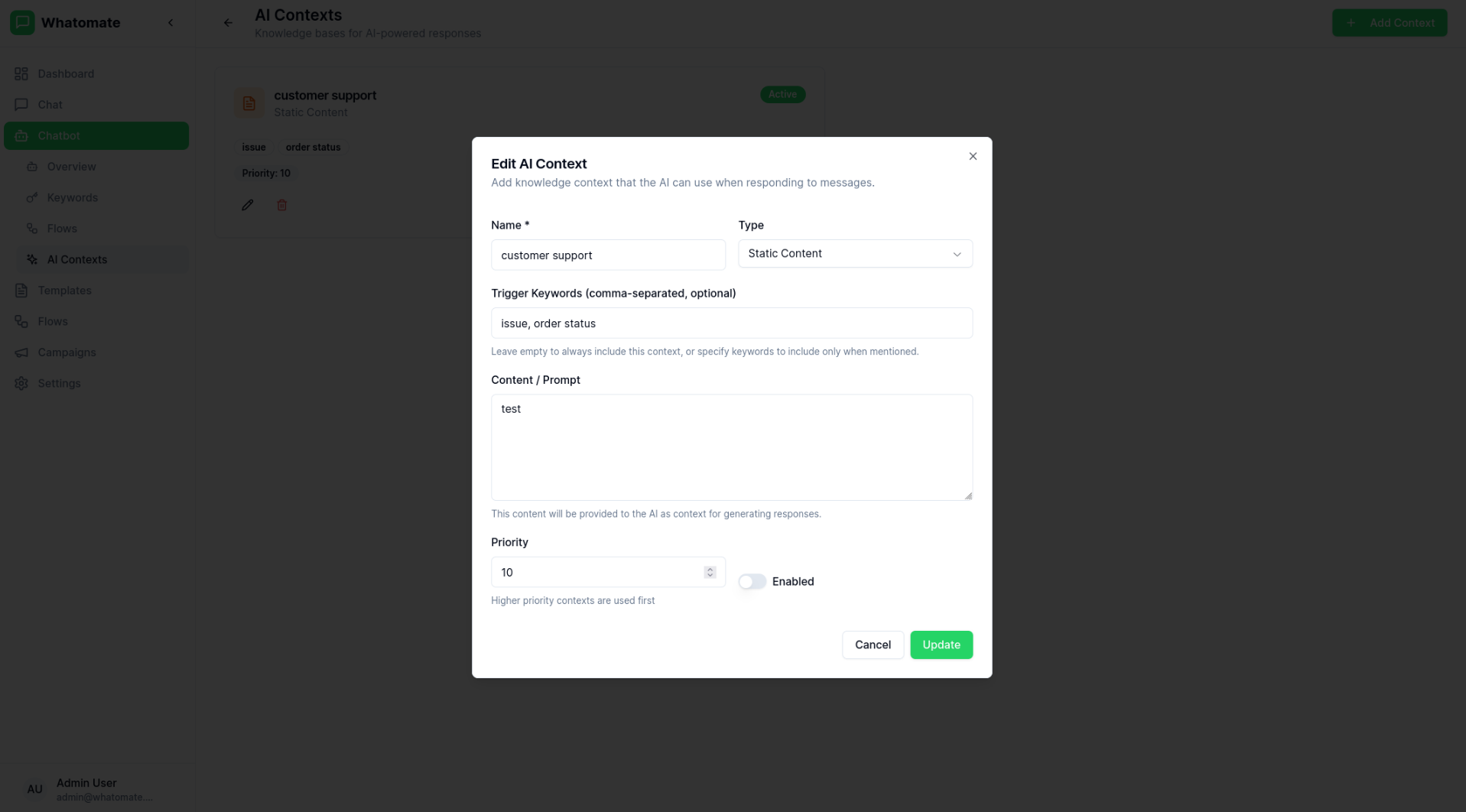

Creating an AI Context

AI Contexts allow you to:

• Define static knowledge bases
• Connect to external APIs for dynamic data
• Set trigger keywords for context activation
• Configure priority for multiple contexts

Trigger keywords

A context with no trigger keywords is sent to the AI with every message. A context with trigger keywords is used only when one of them appears in the customer’s latest message or one of the 2 before it. Matching ignores case and counts whole words only, so price matches “What’s the price?” but not “priceless”. An API context with trigger keywords calls its API only when one of them matches.

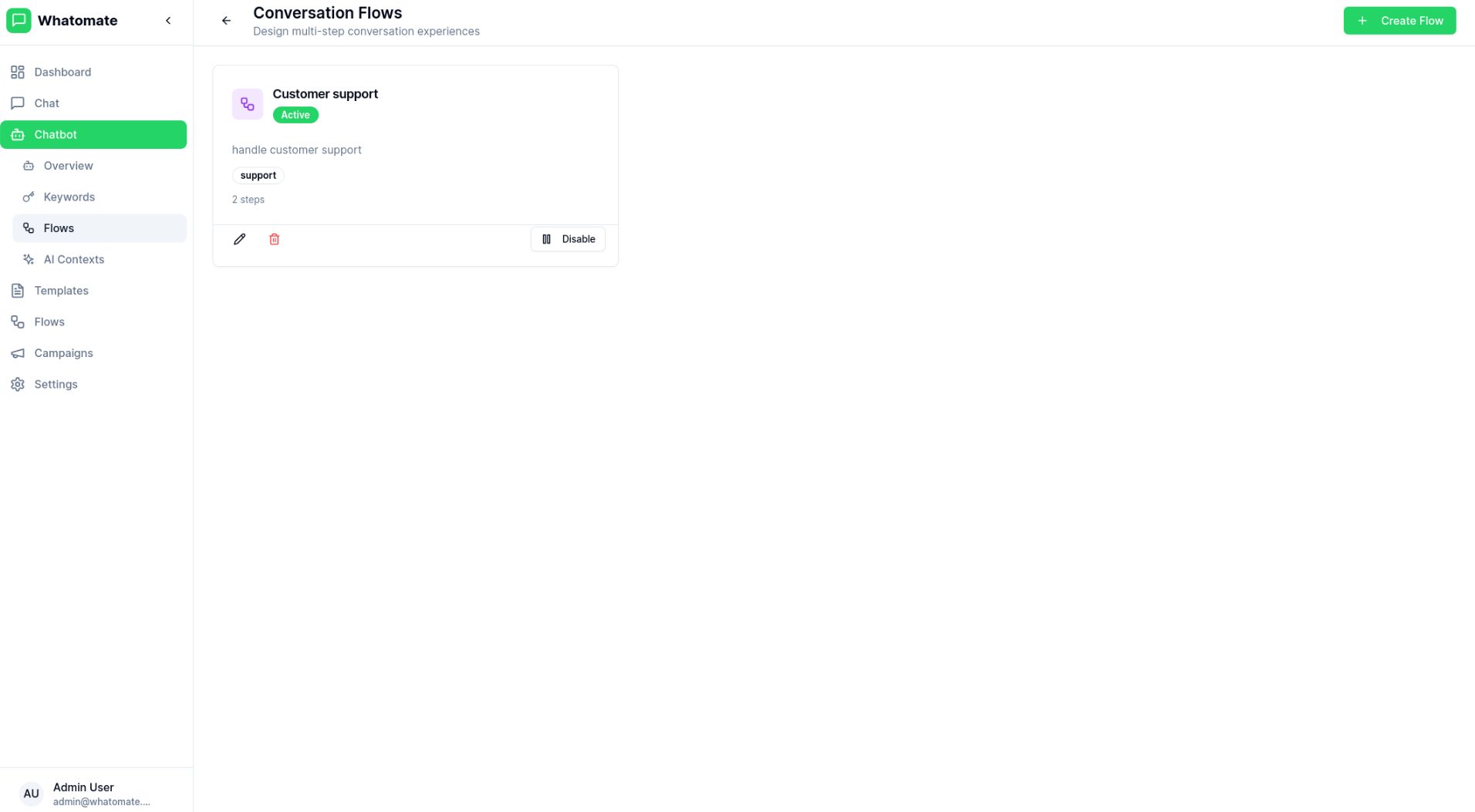

Conversation Flows

Design multi-step conversation flows with branching logic to guide customers through complex interactions.

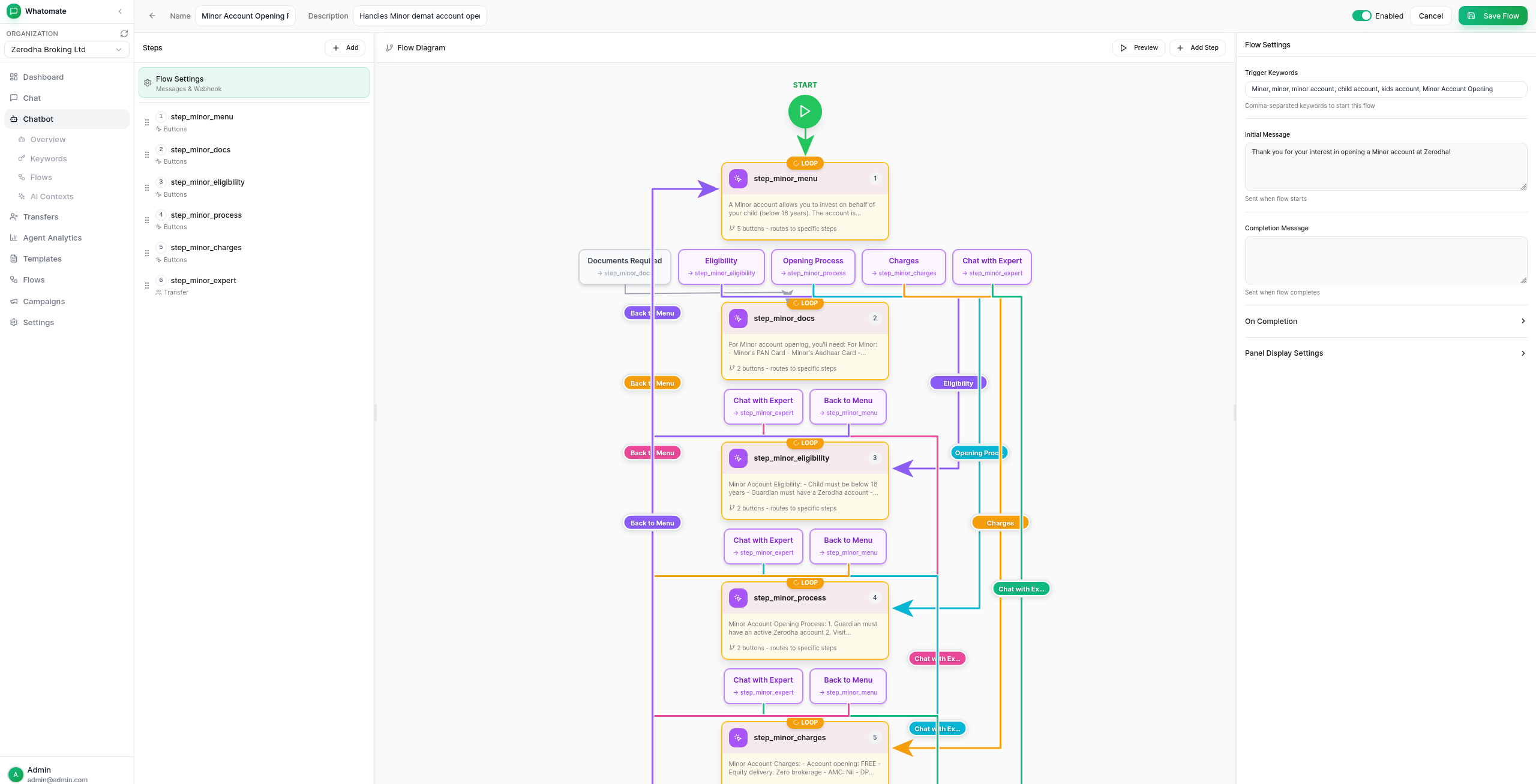

Flow Builder

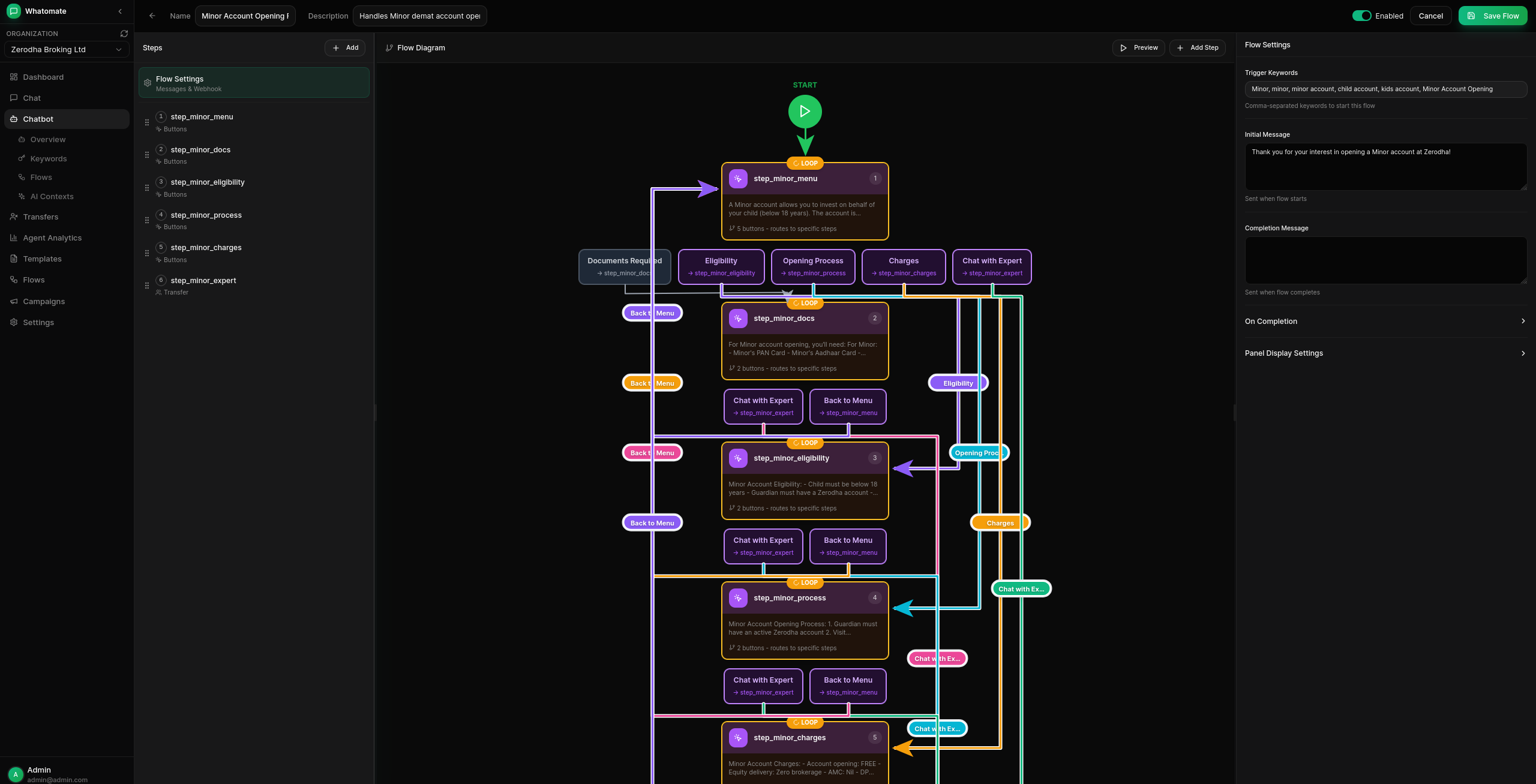

The visual flow builder is a node-and-edge graph editor. Drop nodes onto the canvas, wire them together, and the runtime walks the graph edge-by-edge for each inbound message. Each node has a type (what it does), a config blob (its parameters), and outgoing edges labelled with the outcome they handle (default, button:<id>, input:<val>, true/false, in_hours/out_of_hours, …). An input:<val> edge matches when the user’s free-text reply equals <val>, falling back to default when nothing matches.

Node Types

Type	Purpose	Outgoing edges
start	The flow’s entry node — a no-op marker the runtime starts from.	default
message	Send a templated text message and move on.	default
prompt	Send a question, wait for the user’s reply, optionally validate against a regex, and store the response.	default, max_retries
buttons	Send interactive reply buttons and branch on which one the user taps.	button:<id> per button
api_call	Fire an HTTP request, capture mapped fields into session data, optionally send a templated message.	http:2xx, http:non2xx
condition	Evaluate an expression against session data and route on the result.	true, false
timing	Route based on a per-day business-hours schedule.	in_hours, out_of_hours
set_variable	Assign one or more templated values into session data (no message sent).	default
ai_response	Call the configured LLM provider inline and send its reply.	default
whatsapp_flow	Send a native WhatsApp Flow form and merge the submission into session data.	default
transfer	Hand off to a team / queue and end the flow.	(terminal)
goto_flow	Jump execution into another flow (variables carry over).	(handled internally)
webhook	Fire-and-forget HTTP call; result is ignored.	default
end	Optionally send a final message and terminate the session.	(terminal)

Condition Expressions

condition nodes use a small expression language (expr-lang) evaluated against session variables. Top-level identifiers refer to keys stored via prompt.store_as, api_call.response_mapping, or earlier inputs.

tier == "premium" and amount > 100
status in ["active", "trialing"]
phone_number startsWith "91"

Unknown identifiers resolve to nil, so missing data evaluates as “false” rather than throwing. Compile/runtime errors also resolve to the false edge — the webhook always succeeds, even on a typo.

Flow Features

Feature	Description
Input Validation	Validate user responses on prompt nodes with regex patterns
Variable Storage	Store user inputs and API response fields for later use
Conditional Logic	Branch on expressions, button clicks, business hours, or HTTP status
API Integration	Fetch data from external APIs with response mapping
Template Engine	Format messages with variables, conditionals, and loops
Webhook Headers	Configure custom headers for API calls and completion webhooks
Agent Transfer	Transfer to human agent when needed
WhatsApp Flows	Integrate native WhatsApp Flows
Sub-flows	goto_flow jumps into another flow, carrying variables forward

API Integration

The api_call node lets you call external APIs and use the response data in your messages. (Use webhook instead when you don’t need the response — it fires and forgets, always taking the default edge.)

Configuring an api_call node

1. Set API URL and Method

   Enter the API endpoint URL and select the HTTP method (GET, POST, PUT, PATCH). Use {{variable}} syntax to include session data, including built-in variables like {{phone_number}} (see Built-in variables below).

   https://api.example.com/users/{{phone_number}}

2. Add Headers (Optional)

   Configure custom headers like Authorization tokens or API keys. Variables are substituted in header values too:

   X-User-Phone: {{phone_number}}
   Authorization: Bearer {{api_token}}

3. Configure Request Body (POST/PUT/PATCH)

   Enter JSON body with variables. The same substitution rules apply:

   {"phone": "{{phone_number}}", "name": "{{name}}"}

4. Set Response Mapping

   Map API response fields to session variables for use in templates:

   • name = data.client.name
   • positions = data.portfolio.items
   • total_pnl = data.summary.pnl

5. Write Message Template

   Use the template syntax to format the API response data.

Built-in variables

The following variables are always available inside a flow-step API config (URL, headers, body) — no capture step required:

Variable	Value
{{phone_number}}	The contact’s WhatsApp number, digits only with no leading + (e.g. 919876543210). Set on every api_call and webhook node.
{{_flow_id}}	UUID of the running flow. Seeded when a trigger keyword starts the flow.
{{_flow_name}}	Human-readable name of the flow. Seeded the same way.

Caution

_flow_id / _flow_name are written into session data when a flow is started by a matched trigger keyword. A flow reached another way (for example via goto_flow) does not re-seed them, so don’t rely on them identifying the currently executing flow after a jump.

Anything else has to come from somewhere — typically:

• An earlier prompt or buttons node with store_as configured (the user’s input is saved under that key for later nodes).
• A previous api_call node’s response_mapping (mapped fields are persisted into the session for the rest of the flow).
• A set_variable node.

The same built-ins are also substituted in flow-completion webhook URLs, custom bodies, and custom headers, so you can fire any of these at downstream systems when a flow finishes.

Note

Substitution is verbatim — there’s no URL-encoding pass. Since phone numbers are stored without a leading +, {{phone_number}} is safe in both URL paths and query strings, but any value you captured from user input still needs escaping if it can contain &, #, or spaces.

Template Syntax

The template engine supports variables, conditionals, and loops for dynamic message formatting.

Variables

Access session data and API response fields:

{{name}}                    Simple variable
{{user.profile.name}}       Nested path
{{items[0].name}}           Array index access

Conditionals

Show different content based on conditions:

{{if is_premium}}
  Welcome, premium member!
{{else}}
  Upgrade to premium for more features.
{{endif}}

Supported operators:

• {{if variable}} - Truthy check (non-empty, non-zero)
• {{if amount > 100}} - Greater than
• {{if amount < 100}} - Less than
• {{if amount >= 100}} - Greater than or equal
• {{if amount <= 100}} - Less than or equal
• {{if status == 'active'}} - String equality
• {{if status != 'inactive'}} - String inequality

Loops

Iterate over arrays from API responses:

{{for item in items}}
- {{item.name}}: {{item.quantity}} @ ₹{{item.price}}
{{endfor}}

Example: Portfolio Message

Hi {{name}}, here are your positions:

{{for pos in positions}}
📊 {{pos.symbol}}: {{pos.qty}} @ ₹{{pos.avg_price}}
{{if pos.is_loss}}  ⚠️ Loss: ₹{{pos.loss}}
{{else}}  ✅ Profit: ₹{{pos.profit}}
{{endif}}
{{endfor}}

Total P&L: {{if total_negative}}🔴{{else}}🟢{{endif}} ₹{{total_pnl}}

Tip

Variables set via response mapping are stored in the session and available in all subsequent steps, not just the current API fetch step.

Contact Info Panel

Display collected session data in a side panel when viewing a contact in the chat view. This allows agents to see customer information collected during chatbot flows at a glance.

How It Works

Data is collected from two sources:

• User Input - Fields stored via the Store as option in flow steps
• API Data - Fields extracted via Response Mapping in API fetch steps

All collected data is stored in the session and can be configured to display in the Contact Info Panel.

Configuring the Panel

In the Flow Builder, scroll down to the Panel Display Settings section:

1. View Available Variables

   The panel shows all variables collected in the flow:

   • Variables from Store as fields in input steps
   • Variables from Response Mapping in API fetch steps

2. Add Sections

   Click “Add Section” to create display sections. Each section can have:

   • Label - Custom section name (e.g., “Customer Info”, “Order Details”)
   • Columns - 1 or 2 column layout
   • Collapsible - Allow section to be expanded/collapsed
   • Default Collapsed - Start section in collapsed state

3. Add Fields to Sections

   For each section, add fields from the available variables:

   • Variable - Select from available session variables
   • Label - Display label for the field (e.g., “Name”, “Email”, “Order ID”)
   • Display Type - How to render the value (Text, Badge, or Tag)
   • Color - Color coding for badges/tags

4. Reorder Sections and Fields

   Drag sections and fields to reorder them as needed.

Display Types

Choose how each field value is displayed:

Type	Description	Best For
Text	Plain text (default)	Names, descriptions, long values
Badge	Rounded pill shape	Status values, categories
Tag	Rectangular label	IDs, codes, short labels

Color Options

For Badge and Tag display types, choose a color:

Color	Description	Use Case
Default	Muted gray	Neutral information
Success	Green	Positive status (completed, active, approved)
Warning	Yellow	Attention needed (pending, processing)
Error	Red	Negative status (failed, cancelled, rejected)
Info	Blue	Informational (new, updated)

Panel Features

Feature	Description
Resizable	Drag the left edge to resize the panel width
Auto-Open	Panel automatically opens when viewing contacts with configured data
Collapsible Sections	Expand/collapse sections to focus on relevant information
Multi-Column Layout	Display fields in 1 or 2 columns per section
Display Types	Show values as text, badges, or tags with color coding

Example Configuration

For a customer support flow that collects name, email, and order details:

Section 1: Customer Info (1 column)

• customer_name → “Name” (Text)
• customer_email → “Email” (Text)

Section 2: Order Details (2 columns, collapsible)

• order_id → “Order ID” (Tag, Info)
• order_status → “Status” (Badge, Success/Warning/Error based on value)
• order_date → “Date” (Text)
• order_total → “Total” (Text)

Tip

Use Badge with color coding for status fields to make them visually stand out. Use Text for longer values like names and descriptions.

Agent Transfers

Hand off conversations from the chatbot to human agents when needed.

How Transfers Work

When a conversation is transferred:

1. The chatbot stops processing messages for that contact
2. All messages are visible to the assigned agent
3. The agent can respond and manage the conversation
4. When done, the agent can resume chatbot processing

Transfer Triggers

Transfers can be initiated in three ways:

Manual Transfer

Agents/managers can click “Transfer to Agent” from the chat view to manually transfer a conversation.

Conversation Flow

Add a transfer step in your conversation flow to hand off to agents at specific points.

Keyword Rule

Configure keywords like “talk to agent” or “human” to automatically trigger a transfer.

Teams

Teams allow you to organize agents into groups that handle specific types of inquiries (e.g., Sales, Support, Orders). Each team can have its own assignment strategy and queue.

Creating a Team

Navigate to Settings > Teams to manage teams:

1. Create Team

   Click “Create Team” and provide a name and optional description.

2. Choose Assignment Strategy

   Select how transfers should be assigned to team members:

   • Round Robin - Distributes transfers evenly across available agents
   • Load Balanced - Assigns to the agent with fewest active transfers
   • Manual - Transfers go to team queue for agents to pick

3. Add Members

   Click “Manage Members” to add agents to the team. Each member can be assigned a role:

   • Manager - Can manage team settings and members
   • Agent - Can pick and handle transfers from the team queue

Team-Based Routing in Flows

Use the Transfer to Agent/Team step type in conversation flows to route chats to specific teams:

1. Add Transfer Step

   In the flow builder, add a new step and select “Transfer to Agent/Team” as the message type.

2. Configure Transfer

   • Transfer Message - Optional message sent to the customer before transfer
   • Assign to Team - Select the target team (or “General Queue” for no team)
   • Transfer Notes - Internal notes for agents (supports variables like {{order_id}})

3. Test the Flow

   The transfer step will end the flow and create a transfer to the selected team.

Tip

Use team-based routing to direct order inquiries to the Orders team, sales questions to the Sales team, and technical issues to the Support team.

Queue Management

For Agents

Agents see the Transfers view in their sidebar with:

• My Transfers - Conversations currently assigned to them
• Queue tab - Unassigned transfers from their teams and the general queue
• Pick Next button - Claim the next available transfer (if enabled)
• Team Filter - Filter queue by specific team

Note

Agents only see transfers from teams they belong to. When picking from the queue, agents don’t see contact details until the transfer is assigned to them. This ensures fair FIFO (first-in-first-out) distribution.

For Admins/Managers

Admins and managers have full visibility into the queue and can:

• View all unassigned transfers across all teams
• Filter by team to see specific queues
• Assign transfers to specific agents
• View transfer history
• Resume transfers (return to chatbot)

Queue Settings

Configure queue behavior in Chatbot > Settings:

• Allow Agents to Pick from Queue - When enabled, agents can self-assign transfers by clicking “Pick Next”. When disabled, only admins/managers can assign transfers.

• Assign to Same Agent - When enabled, transfers are automatically assigned to the contact’s existing agent. When disabled, all transfers go to the queue regardless of previous assignments.

Transfer Lifecycle

1. Transfer Created

   A transfer is created via manual action, flow step, or keyword rule. The contact is assigned to a team queue, general queue, or an existing agent.

2. Team Assignment

   Based on the team’s assignment strategy:

   • Round Robin/Load Balanced - Automatically assigned to an available team member
   • Manual - Goes to team queue for agents to pick

3. Agent Handling

   The agent communicates with the customer. The chatbot is paused for this contact.

4. Resume Chatbot

   When the conversation is complete, the agent clicks the “Resume Chatbot” button (play icon) in the chat header to return the contact to chatbot processing.

Chat View Indicators

When viewing a contact with an active transfer:

• A “Chatbot Paused” badge appears next to the contact name
• A Resume Chatbot button (play icon) appears in the chat header
• The “Transfer to Agent” option is hidden (already transferred)

Auto-Assignment

If a contact already has an assigned agent (from a previous conversation), new transfers for that contact are automatically assigned to the same agent.

Tip

Use transfers strategically to handle complex inquiries that require human judgment while letting the chatbot manage routine questions.
